H.D.G Extension Bracket Square Tube Tubular 1.32 KGS Weight

    Buy cheap H.D.G Extension Bracket Square Tube Tubular 1.32 KGS Weight from wholesalers

    Buy cheap H.D.G Extension Bracket Square Tube Tubular 1.32 KGS Weight from wholesalers
    • Buy cheap H.D.G Extension Bracket Square Tube Tubular 1.32 KGS Weight from wholesalers

    H.D.G Extension Bracket Square Tube Tubular 1.32 KGS Weight

    Ask Lasest Price
    Brand Name : Geto Telecom
    Model Number : CT24
    Certification : ISO 9001:2015
    Price : 4.2-5USD
    Payment Terms : L/C, T/T
    Supply Ability : 500 PCS/Day
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    H.D.G Extension Bracket Square Tube Tubular 1.32 KGS Weight

    Feature

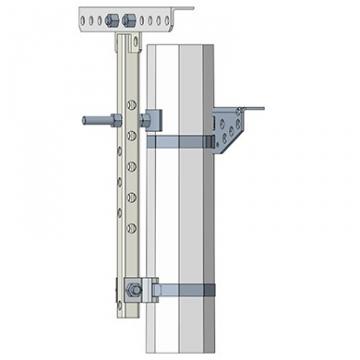

    Extension bracket square tube is engineered to mount on wooden, metal or composite poles but also on posts or telecom masts.
    this tubular extension can be installed either at the opposite side of the copper pole line hardware or sideways, depending on how loaded the pole is already.
    Different fixing methods are possible: pole head and coupling bolt, lag screw 100mm or 80mm, pole band, pole bracket, nut or curved plate. The securing method must be selected by considering the pole type (wooden, metal or composite). the mounting point (opposite or sideways) the possibility to drill holes into the pole or the existence of pre-drilled ones.
    The top of the universal extension bracket square tube presents a plate on which a cross-arm with 5, 11 or 13 holes can be mounted by using 2 assembly bolts 1/12.
    Features & benefits
    Enables to off-load telecom poles
    mounts on all types of telecom poles or posts: wooden, metal or composite
    Welded plate equipped with inferior holes enabling double anchoring applications in alignment with holes used for the cross-arm mounting
    Mounts on pre-drilled poles or with pole band, at the opposite side or sideways of telecom network already in place.
    Material: galvanized steel
    Dimensions(mm): 500x115x30
    Our service

    1, Product consulting service
    2, Cost-saving advice

    3, Fast response speed to needs
    4, Professional and complete reference documents
    5, Safe and cheap transportation solutions
    6, 7*24 Hours After Sales Service
