Mini Self-supporting 12 Cores Flat Drop Optic Cable

Description

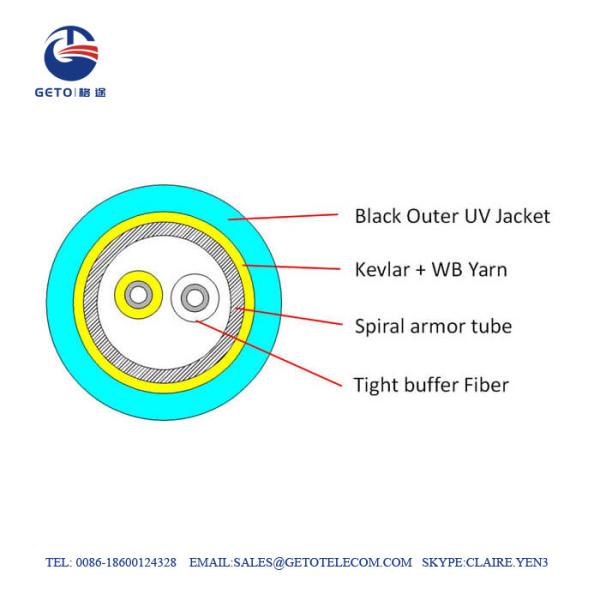

OM3 Plenum Armored Spiral Steel Distribution Cable, is put 900um or 600um tight buffer fibers wrapped a layer of Spiral Stainless steel tube and add a layer of water-blocking Kevlar yarns as strength unit, finally into fiber optic cable with PVC or LSZH sheath. The fiber core is protected by a Spiral steel tube that offers easy installation and high crush resistance. The plenum armored steel fiber optic cable allow direct buried or aerial installation for indoor or outdoor environmental conditions.

Characteristics

Micro Armor Fibers
1. The smallest OD of any armor compared to conventional optical fiber cable in size and flexibility
2. Lightest and smallest armor makes routing and installation faster and easier
3. Cables are up to 65% smaller and 75% lighter than conventional Congregated Steel Tape (CST)

Encased Armor Spiral Steel Tube
1. Provides the strongest armor with maximum bend radius and designed for
all indoor & outdoor conditions
2.Crush and rodent resistant for multiple usages
3.Integral Spiral steel tube (SST) provides rugged protection, ensure high crush resistance

Outer Jackets
1.All jackets and colors compatible for Riser, Plenum, Indoor/Outdoor, LSZH, Buried & Industrial projects

Specification

Name: Plenum OM3 Armored Spiral Steel Cable
Fiber Type: MM OM3
Fiber Count: 2 Fibers
Tight-buffer Fiber: 600±50μm
Spiral Steel Tube: 1.8±0.2mm (SUS 202)
Strength Member: Kevlar+WB yarn (4*1000D)
Outer Diameter: 3.0±0.3mm
Outer Jacket: LSZH Black UV Jacket

Our service

1, Product consulting service
2, Cost-saving advice
3, Fast response speed to needs
4, Professional and complete reference documents
5, Safe and cheap transportation solutions
6, 7*24 Hours After Sales Service

Contact us

Email: sales@getotelecom.com

Whatsapp/Tel: 86-18600124328

Web: www.getotelecom.com

Company

About Us

Established in 2009, Geto Telecom is a reputable supplier in the telecommunication industry, which owns three production centers. We design and OEM pole line fittings, optic fiber cable and accessories.

To achieve the goal of offering not only qualified, but cost effective products, we are always on the way to optimize production procedure, control cost, train staff, improve after-sales service as well as adjust transportation portfolio.

It is far more enough to deliver only satisfied products, we are here to provide more value added service.

We can offer:

Product consulting service

Cost-saving advice

Fast response speed to needs

Professional and complete reference documents

Safe and cheap transportation solutions

7*24 Hours After Sales Service

We care what clients care, and we do what we can do to beyond client’s expectation.

To us, business is not just earning money, but a way to promote growth of both parties. We will never stop here, to be better is our motivation forever.

Product Application

Our product is wildly used in aerial fiber optic cable or electric cable network infrastructure implementation
