ISO 9001 ADSS OM1 1KM 4 Core Fiber Optic Cable

Aerial Adss Ofc Cable Adss Fiber Cable Corning Fiber

Description

ADSS Completely metal-free design with fiber counts from 12 to 288 fibers, suitable for deployment near high-voltage power lines in long spans. These cables can be installed in short spans between aerial poles without a separate messenger upon which to attach the optical cable. Also available in mid and long-length spans.

Characteristics

1．Suitable for use on distribution and high voltage transmission lines with mini spans or self supporting installation for telecommunication ;
2．Track-Resistant outer jacket available for the high voltage;
3．Line where space potentials up to 35kv;
4．Gel-Filled buffer tubes are S-Z stranded;
5．Aramid yarn is used as the strength member to assure the tensile and strain performance for mini span (usually below 100 meters) ;
6．The fiber counts from 4-288 fibers.

Specification

Item	62.5μm(OM1) 850nm/1300nm	50μm(OM2) 850nm/1300nm	G. 652 1310nm/1550nm	G. 655 1550nm/1625nm
Attenuation Of Maximum Value(dB/km)	3.5/1. 5	3.5/1. 5	0. 36/0. 22	0. 22/0. 26
Attenuation Of Typical Value(dB/km)	3.5/1. 5	3.0/1. 0	0. 35/0. 21	0. 21/0. 24

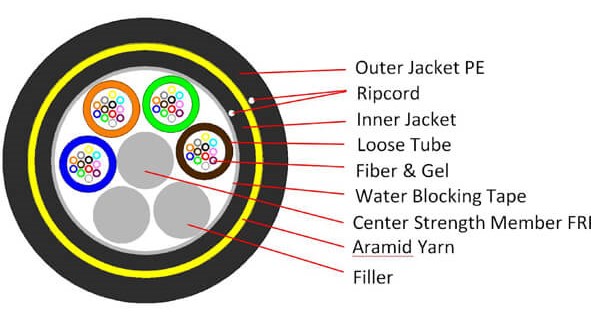

Structure parameters:
Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter(mm)	Thickness of outer jacket(mm)	Cable diameter(mm)	Cable weight (kg/km)
4	1+6	4	2.0±0.1	2.3/2.3	1.7±0.1	10.5±0.5	80
6	1+6	6	2.0±0.1	2.3/2.3	1.7±0.1	10.5±0.5	81
8	1+6	4	2.0±0.1	2.3/2.3	1.7±0.1	10.5±0.5	81
12	1+6	6	2.0±0.1	2.3/2.3	1.7±0.1	10.5±0.5	81
24	1+6	6	2.0±0.1	2.3/2.3	1.7±0.1	10.5±0.5	83
36	1+6	6	2.0±0.1	2.3/2.3	1.7±0.1	10.5±0.5	83
48	1+6	12	2.2±0.1	2.6/2.6	1.7±0.1	11.3±0.5	97
72	1+6	12	2.2±0.1	2.6/2.6	1.7±0.1	11.3±0.5	98
96	1+8	12	2.2±0.1	3.0/3.9	1.7±0.1	12.5±0.5	122

Cable Type	Drum
Cable Type	Height(mm)	Width (mm)	Inner Diameter (mm)	Length (Km)	Drum Type
ADSS-4	900	760	500	2	Plywood wood drum
ADSS-6	900	760	500	2	Plywood wood drum
ADSS-8	900	760	500	2	Plywood wood drum
ADSS-12	900	760	500	2	Plywood wood drum
ADSS-24	900	760	500	2	Plywood wood drum
ADSS-36	900	760	500	2	Plywood wood drum
ADSS-48	950	760	500	2	Plywood wood drum
ADSS-72	950	760	500	2	Plywood wood drum
ADSS-96	1200	760	650	2	Plywood wood drum
